Rated Current 1000A Clamp CT Transformer Epoxy Resin Encapsulated

Key Specifications/Special Features:

1. Specification notes
   1. Single-phase current test/quality warranty
   2. Clamp-on current transformer
   3. Current range 100mA to 6kA
2. Mainly using for:
   1. Clamp-on current transformer
   2. Clip on current transformer
   3. Current transformer clamp
   4. Current transformer
3. Technial index notes
   1. Testing current: 100mA to 6, 000A
   2. Accuracy class is divided into 0.1, 0.2, 0.5 and 1.0 grade
   3. Primary current: 100mA to 6, 000A
   4. Secondary current: 1mA to 5A, 0 to 5V, or DC 4 to 20mA
   5. ABS anti-combustion plastic casing
   6. Encapsulated with epoxy resin to ensure strong insulation ability
4. Product description:
   1. High-precision current transformers
   2. Clamp-on current transformer
   3. Locking snap current transformers
   4. Split core current transformer
   5. Reliable linear performance transformers
   6. Strong anti-magnetic disturbance epoxy current transformers-
   7. Completely-enclosed, good mechanical behavior, suitable for various environments, strong voltage isolation ability, delicate appearance
   8. Notes: Suitable for single-phase electricity meter as well as anti-tampering electricity meter
   9. Linear output current, high precision
   10. There are standard holes on the primary lead wire which can be directly fixed on the meter terminals with standard bolts
   11. There are standard holes on the external casing which facilitates installation on a PCB
   12. Various mechanical dimensions, highly customer-tailored
   13. Quality guarantee
   14. Competitive price
   15. Perfect service
   16. If you want to know more information for this model: H-CT007series, Please feel free to contact with us

clamp on current transformer

clamp type current transformer

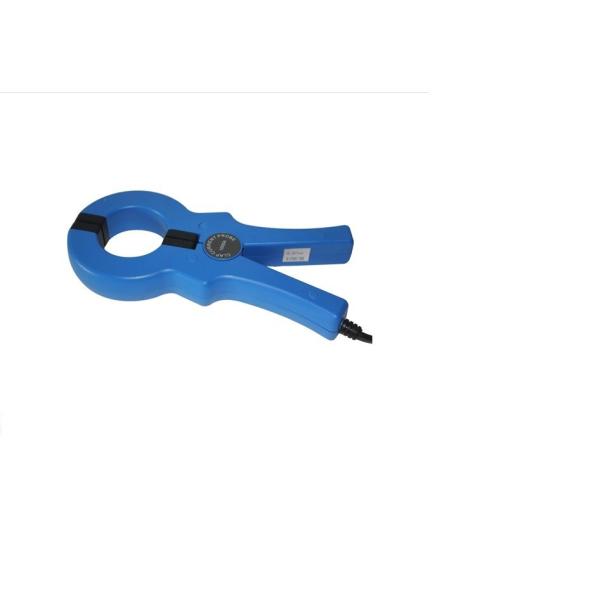

Rated Current 1000A Clamp CT Transformer Epoxy Resin Encapsulated Images
